Model T7076PM

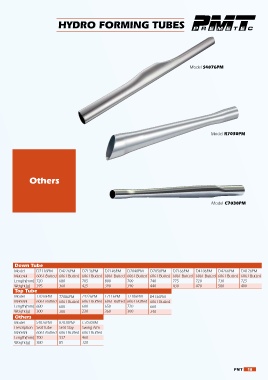

HYDRO FORMING TUBES

Model S4076PM

Model T7086PM

Model R7030PM

Top Tube Others
Model T4126PM

Model C7030PM

Model T7116PM

Down Tube
Model D7116PM D4116PM D7136PM D7146PM D7040PM D7050PM D7166PM D4106PM D4166PM D4126PM
Material 6061 Butted 6061 Butted 6061 Butted 6061 Butted 6061 Butted 6061 Butted 6061 Butted 6061 Butted 6061 Butted 6061 Butted
Length(mm) 720 680 705 800 700 740 775 720 730 725
Weight(g) 395 360 425 390 390 440 430 470 580 400
Top Tube
Model T7076PM T7086PM T4126PM T7116PM T7106PM E4136PM
Material 6061 Butted 6061 Butted 6061 Butted 6061 Butted 6061 Butted 6061 Butted
Length(mm) 680 600 600 650 720 660
Model T7106PM Weight(g) 300 300 230 360 300 340
Others
Model S4076PM R7030PM C7030PM
Description Seat tube Seat Stay Swing Arm
Material 6061 Butted 6061 Butted 6061 Butted
Length(mm) 700 337 460
Weight(g) 380 85 120
Model E4136PM

PMT 17 PMT 18
